Dropdown 组件

代码示例

基础示例

html


<html>
<template id="layout-template">
    <webpdf>
        <div>
            <dropdown icon-class="fv__icon-toolbar-shape" text="Dropdown">
                <xbutton icon-class="fv__icon-toolbar-square">Square</xbutton>
                <xbutton icon-class="fv__icon-toolbar-circle">Circle</xbutton>
                <li class="fv__ui-dropdown-separator"></li>
                <file-selector>Select a file</file-selector>
                <li class="my-dropdown-list-item">
                </li>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .my-dropdown-list-item {
        padding: 10px 0;
        text-align: center;
    }

    .fv__ui-dropdown {
        width: auto;
    }
</style>
<script>
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate: function () {
            return document.getElementById('layout-template').innerHTML;
        },
        disableAll: function () {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

Separation

Dropdown 的按钮可以分成左右两部分，左半部分由图标，文本组成，右半部分则为下拉箭头。当 separate 参数设置为 false 时，点击左右两个部分都能够使下拉列表显示，当 separate 参数设置为 true 时，则只有点击下拉箭头才会使下拉列表显示。

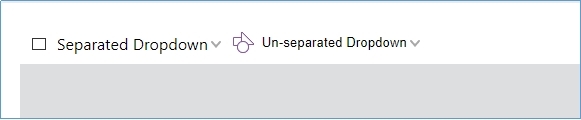

在以下的 demo 中，您将看到两个 dropdown button，如下所示：

Paddle Button

尝试点击 'Separated Dropdown' 按钮，您将注意到 dropdown 列表只能在单击箭头时显示。这是因为 dropdown button 已被分离，只有单击箭头时才会触发 dropdown 列表。但是，您可以通过单击 Un-separated Dropdown 按钮的任意区域来显示 dropdown 列表。

html


<html>
<template id="layout-template">
    <webpdf>
        <div>
            <!-- By default, the value of dropdown's 'separate' option is true -->
            <!-- Set selected="0" means when you click on the dropdown button, it will trigger the event for  the first item in the dropdown list -->
            <dropdown name="separate-dropdown" icon-class="fv__icon-toolbar-square" text="Separated Dropdown"
                      selected="0">
                <xbutton name="separate-dropdown-square-btn" icon-class="fv__icon-toolbar-square">Square</xbutton>
                <xbutton icon-class="fv__icon-toolbar-circle">Circle</xbutton>
                <file-selector>Select a file</file-selector>
                <li class="my-dropdown-list-item">
                    html &lt;li&gt; tag
                </li>
            </dropdown>
            <dropdown name="non-separate-dropdown" icon-class="fv__icon-toolbar-shape" text="Un-separated Dropdown"
                      separate="false">
                <xbutton icon-class="fv__icon-toolbar-square">Square</xbutton>
                <xbutton icon-class="fv__icon-toolbar-circle">Circle</xbutton>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .my-dropdown-list-item {
        padding: 10px 0;
        text-align: center;
    }

    .fv__ui-dropdown {
        width: auto;
    }
</style>
<script>
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate: function () {
            return document.getElementById('layout-template').innerHTML;
        },
        getDefaultFragments: function () {
            return [{
                target: 'separate-dropdown-square-btn',
                config: [{
                    callback: function () {
                        alert('Click on separate Dropdown');
                    }
                }]
            }];
        },
        disableAll: function () {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

作为 select 组件使用

html


<html>
<template id="layout-template">
    <webpdf>
        <div>
            <!-- Specify selected="0" that is the initial value -->
            <dropdown name="separate-dropdown" icon-class="fv__icon-toolbar-square" text="Separated Dropdown"
                      selected="0">
                <xbutton name="separate-dropdown-square-btn" icon-class="fv__icon-toolbar-square">Square</xbutton>
                <xbutton icon-class="fv__icon-toolbar-circle">Circle</xbutton>
            </dropdown>
            <dropdown name="not-separate-dropdown" icon-class="fv__icon-toolbar-shape" text="not separated Dropdown"
                      separate="false" selected="0">
                <xbutton icon-class="fv__icon-toolbar-square">Square</xbutton>
                <xbutton icon-class="fv__icon-toolbar-circle">Circle</xbutton>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .my-dropdown-list-item {
        padding: 10px 0;
        text-align: center;
    }

    .fv__ui-dropdown {
        width: auto;
    }
</style>
<script>
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate: function () {
            return document.getElementById('layout-template').innerHTML;
        },
        getDefaultFragments: function () {
            return [{
                target: 'separate-dropdown @xbutton,not-separate-dropdown @xbutton',
                config: [{
                    callback: function () {
                        this.component.parent.select(this.component);
                    }
                }]
            }];
        },
        disableAll: function () {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

可编辑的

html


<html>
<template id="layout-template">
    <webpdf>
        <div>
            <dropdown name="font-editable-dropdown" editable>
                <xbutton>Helvetica</xbutton>
                <xbutton>Courier</xbutton>
                <xbutton>Times-Bold</xbutton>
                <xbutton>宋体</xbutton>
            </dropdown>
            <dropdown name="zoom-editable-dropdown" editable @controller="custom:ZoomPageController">
                <xbutton @controller="custom:ScaleRatioController" scale="0.5">50%</xbutton>
                <xbutton @controller="custom:ScaleRatioController" scale="0.75">75%</xbutton>
                <xbutton @controller="custom:ScaleRatioController" scale="1">100%</xbutton>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .fv__ui-dropdown {
        width: 80px;
    }
</style>
<script>
    UIExtension.PDFUI.module('custom', [])
            .controller('ScaleRatioController', {
                handle: function () {
                    const scaleRatio = parseFloat(this.component.element.getAttribute('scale'));
                    debugger;
                    this.component.parent.setEditValue(scaleRatio);
                }
            })
            .controller('ZoomPageController', {
                mounted: function () {
                    const component = this.component;
                    const firstChild = component.childAt(0);
                    const scaleRatio = parseFloat(firstChild.element.getAttribute('scale'))
                    component.setEditValue(scaleRatio);
                    component.on('change', function (newValue, oldValue) {
                        if (isNaN(parseFloat(newValue))) {
                            alert('Illegal scale value: ' + newValue);
                            component.setEditValue(oldValue);
                            return;
                        }
                        alert('scale value changed to: ' + newValue)
                    })
                }
            });
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate: function () {
            return document.getElementById('layout-template').innerHTML;
        },
        getDefaultFragments() {
            return [{
                target: 'zoom-editable-dropdown',
                config: {
                    editOptions: {
                        type: 'number',
                        min: 0,
                        max: 10,
                        step: 0.01
                    }
                }
            }];
        },
        disableAll: function () {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

html


<html>
<template id="layout-template">
    <webpdf>
        <div class="flex-with-gap">
            <dropdown text="Align left,bottom(default position)" align="left" valign="bottom">
                <li>left bottom</li>
            </dropdown>
            <dropdown text="Align right,bottom" align="right" valign="bottom">
                <li>right bottom</li>
            </dropdown>
            <dropdown text="Align center,bottom" align="center" valign="bottom">
                <li>center bottom</li>
            </dropdown>
        </div>
        <div class="flex-with-gap">
            <dropdown text="Align out-right,bottom" align="out-right" valign="bottom">
                <li>out-right bottom</li>
            </dropdown>
            <dropdown text="Align client-center,bottom" align="client-center" valign="bottom">
                <li>client-center bottom</li>
            </dropdown>
            <dropdown text="Align out-left,bottom" align="out-left" valign="bottom">
                <li>out-left bottom</li>
            </dropdown>
        </div>
        <div class="flex-with-gap">
            <dropdown text="Align left,client-center" align="left" valign="client-center">
                <li>left client-center</li>
            </dropdown>
            <dropdown text="Align client-center,client-center" align="client-center" valign="client-center">
                <li>client-center</li>
            </dropdown>
            <dropdown text="Align left,top" align="left" valign="top">
                <li>left top</li>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .fv__ui-dropdown {
        width: auto;
    }

    .flex-with-gap {
        display: flex;
        flex-direction: row;
        justify-content: center;
    }

    .flex-with-gap > .fv__ui-dropdown {
        margin: 0 20px;
        flex: 1 1 auto;
    }
</style>
<script>
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate: function () {
            return document.getElementById('layout-template').innerHTML;
        },
        disableAll: function () {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

html


<html>
<template id="layout-template">
    <webpdf>
        <div>
            <dropdown separate="false" @controller="custom:DropdownItemListController as ctrl"
                      text="Dynamic dropdown list">
                <li style="padding-left: 1em;">Click button to create more</li>
                <li @foreach="item in ctrl.items track by id">
                    <text @sync.text="item.text"></text>
                </li>
                <xbutton icon-class="fv__icon-toolbar-add-sign" @controller="custom:AddItemController">Add dropdown
                    item
                </xbutton>
            </dropdown>
        </div>
        <div class="fv__ui-body">
            <viewer></viewer>
        </div>
    </webpdf>
</template>
</html>
<style>
    .fv__ui-dropdown {
        width: auto;
    }
</style>
<script>
    UIExtension.PDFUI.module('custom', [])
            .controller('DropdownItemListController', {
                init: function () {
                    this.items = [{
                        id: Date.now().toString(16),
                        text: new Date().toLocaleString()
                    }];
                },
                addItem: function (data) {
                    this.items = this.items.concat(data);
                    this.digest();
                }
            })
            .controller('AddItemController', {
                handle: function () {
                    const itemListCtrl = this.data.ctrl;
                    itemListCtrl.addItem({
                        id: Date.now().toString(16),
                        text: new Date().toLocaleString()
                    });
                }
            })
    var CustomAppearance = UIExtension.appearances.Appearance.extend({
        getLayoutTemplate() {
            return document.getElementById('layout-template').innerHTML;
        },
        disableAll() {
        }
    });
    var libPath = window.top.location.origin + '/lib';
    var pdfui = new UIExtension.PDFUI({
        viewerOptions: {
            libPath: libPath,
            jr: {
                licenseSN: licenseSN,
                licenseKey: licenseKey
            }
        },
        renderTo: document.body,
        appearance: CustomAppearance,
        addons: []
    });
</script>

json

{
  "iframeOptions": {
    "style": "height: 500px"
  }
}

API

模板示例:

html


<dropdown text="" icon-class="" editable align="left" valign="bottom" separate="true" selected="0"></dropdown>

模板属性:

属性	描述	类型	默认值	版本
text	设置 dropdown button 文本	`string`	`''`	7.0
icon-class	设置图标的 css class	`string`	`''`	7.0
editable	是否可编辑	`boolean`	`false`	7.0
align	水平对齐	`'left'	'right'	'out-right'
valign	垂直对齐	`'top'	'bottom'	'center'
separate	dropdown button 是否分离	`boolean`	`true`	7.0

除了 editOptions，其他属性与模板属性一样。

javascript

{
    target: 'dropdown-name',
        config
:
    {
        editOptions: {
            type: 'text',
                min
        :
            0,
                max
        :
            0,
                step
        :
            0,
                vallue
        :
            ''
        }
    }
}

属性	描述	类型	默认值	版本
editOptions.type	指定 dropdown 编辑模式，支持 `'text'` 和 `'number'`。	`string`	`'text'`	7.0
editOptions.min	编辑框的最小值。只有当编辑模式为 `'number'` 时才有效。	`number`		7.0
editOptions.max	编辑框的最大值。只有当编辑模式为 `'number'` 时才有效。	`number`		7.0
editOptions.step	编辑框的操作步骤。只有当编辑模式为 `'number'` 时才有效。	`number`		7.0
editOptions.value	编辑框的初始值	`string	number`

属性	描述	类型
disabled	Dropdown 禁用状态	`boolean`
isVisible	Dropdown 可见状态	`boolean`
isActive	检查 dropdown 列表是否处于活动状态	`boolean`

方法

方法	描述	版本
`setEditValue(text: String	number): void`	设置输入值。其不会触发 `change` 事件。
`disable(): void`	禁用 dropdown	7.0
`enable(): void`	启用被禁用的 dropdown	7.0
`show(): void`	显示隐藏的 dropdown	7.0
`hide(): void`	隐藏 dropdown	7.0
`active(): void`	打开 dropdown	7.0
`deactive(): void`	关闭 dropdown	7.0
`destroy(): void`	销毁组件	7.0

事件

名称	描述	示例	版本
active	展开/显示下拉列表时触发	`dropdown.on('active', () => {})`	7.0
deactive	隐藏 dropdown 时触发	`dropdown.on('deactive', () => {})`	7.0
change	在鼠标进入和焦点丢失时触发	`dropdown.on('change', (newValue,oldValue) => {})`	7.0

可访问性

插件

自定义

UI 基础

业务组件

基础组件

指令

字体

疑难解答

升级须知

更新日志

代码示例

基础示例

Separation

作为 select 组件使用

可编辑的

API

方法

事件

Dropdown 组件 ​

代码示例 ​

基础示例 ​

Separation ​

作为 select 组件使用 ​

可编辑的 ​

定位 dropdown 列表 ​

动态 dropdown 列表 ​

API ​

Dropdown 组件模板 ​

使用 fragment 配置 dropdown 属性 ​

Dropdown 对象属性 ​

方法 ​

事件 ​

代码示例

基础示例

Separation

作为 select 组件使用

可编辑的

定位 dropdown 列表

动态 dropdown 列表

API

Dropdown 组件模板

使用 fragment 配置 dropdown 属性

Dropdown 对象属性

方法

事件
